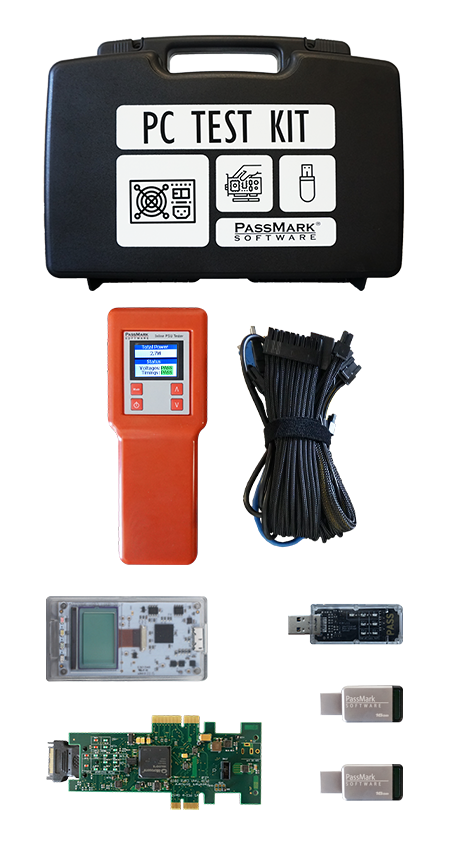

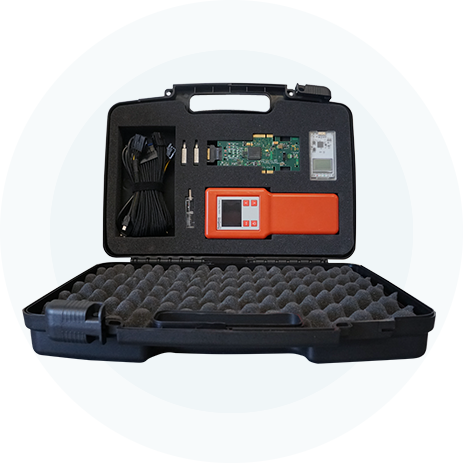

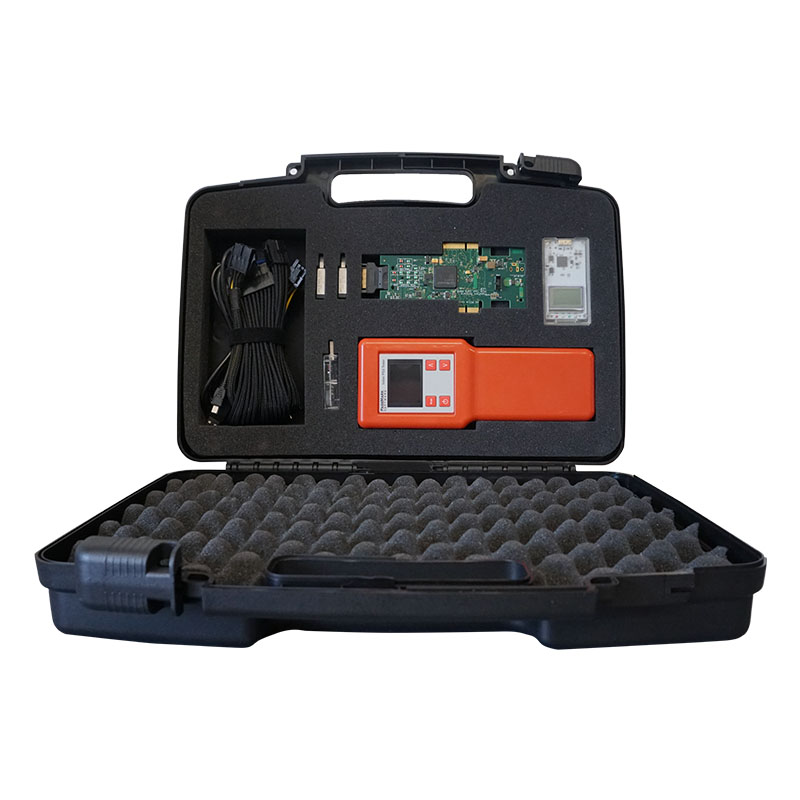

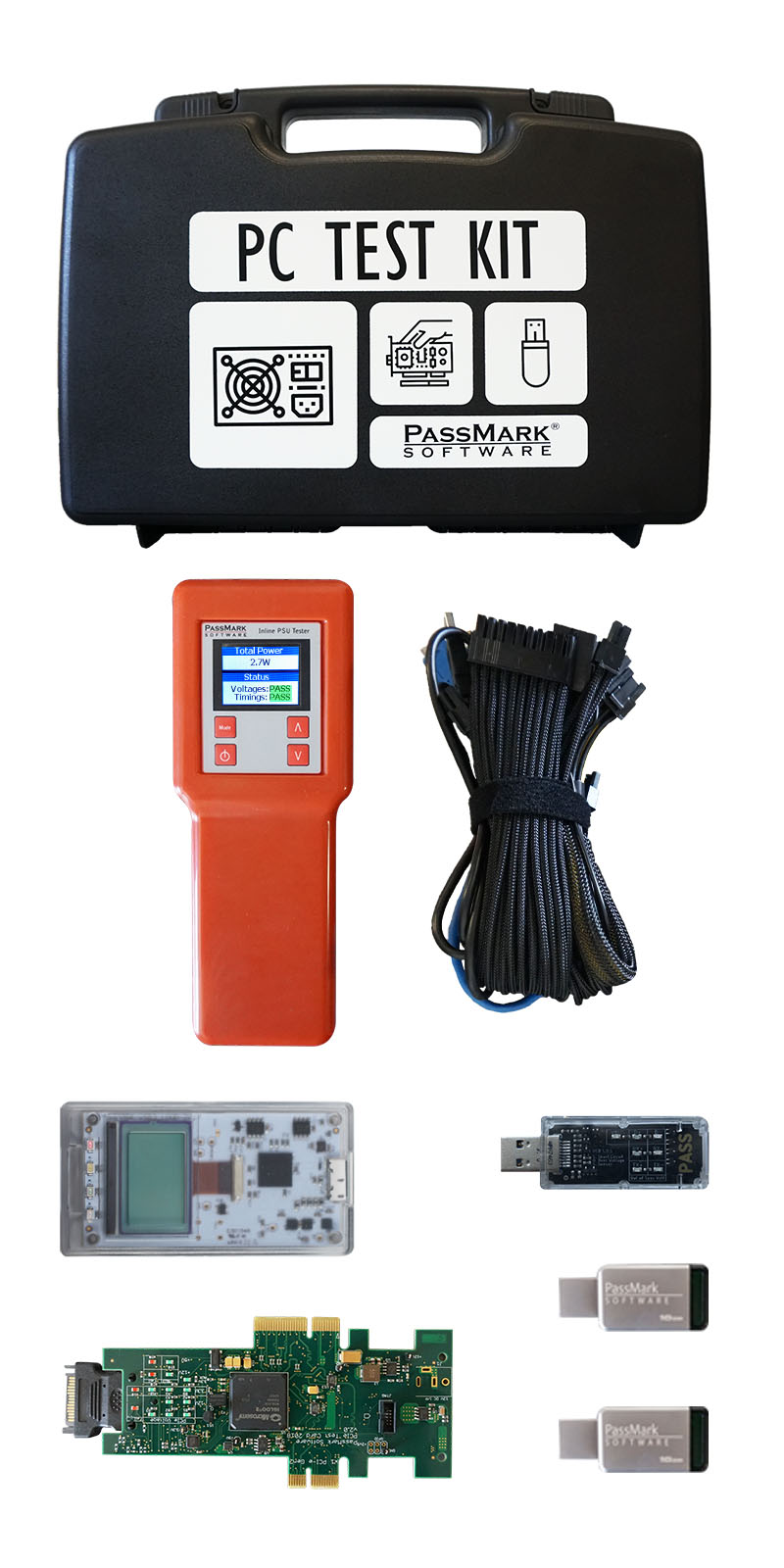

PC Test Kit

All the tools you need to test and diagnose computer hardware.

  • A durable polypropylene case with snap latches and a carry handle
  • 6 high-quality hardware tools in one location. Each hardware tool in the PC Test Kit is housed in its own foam compartment to help safeguard your investment
  • Fourteen full software packages conveniently pre-installed on two handy USB Flash drives. Every purchase comes with a single-user commercial license for all included software.
  • Booting from the Bootable UFD during system startup will give you access to a Linux environment with BurnInTest Linux installed, even when the operating system has not been installed or has been corrupted by faulty hardware or software. Exclusive to the PassMark UFD!

Six Hardware Tools

  • PassMark USB FlashDrive (UFD)
  • Run software directly from the UFD on Windows 7 or above - no installation or configuration necessary! Fantastic for PC Technicians on the move!
  • MemTest 86 Pro USB Flash Drive (UFD)
  • Bootable UFD with MemTest86 Pro. Comes with MemTest86 Pro pre-installed and ready to use. Also comes with an extensive user guide outlining simple step-by-step instructions for using MemTest86 to diagnose and troubleshoot PC memory problems.
  • Inline PSU Tester
  • The easiest way to diagnose and troubleshoot your desktop PC Power Supply Unit (PSU) without risking damage to the motherboard or other PC components and cables.
  • PCIe Test Card
  • For troubleshooting and testing the speed, stability and voltage of your PCIe slots.
  • USB 3.0 Loopback Plug
  • Test your USB 3.0 and 2.0 ports. Diagnose port problems with BurnInTest, or benchmark port speeds with USB3Test. This includes a USB Cable (40cm).
  • USB S.O.S. Short Circuit Tester
  • The quickest and easiest way to check port voltage and short circuit in USB ports and USB chargers.
  • Audio Loopback Cable
  • Comprised of two quality 3.5mm gold plated stereo plugs, the Audio Loopback Cable lets you perform sound card loopback testing with BurnInTest Pro.

Fourteen Software Packages

Note: All packages run directly from USB drives.

  • BurnInTest Windows
  • Quickly stress test a PC's major subsystems for endurance, reliability and stability. (32-bit and 64-bit versions included)
  • BurnInTest Linux
  • Boot to Linux and run BurnInTest Linux using your USB Flash Drive. No operating system required!
  • PerformanceTest
  • Objectively benchmark a PC using twenty eight tests over six test suites with this user friendly software package.
  • WirelessMon
  • Monitor the status of wireless adapters and gather information about nearby wireless access points in real time.
  • KeyboardTest
  • Check that all the keys on the keyboard are functioning correctly.
  • MonitorTest
  • Investigate the quality and performance of computer monitors and LCD flat panel screens.
  • BatteryMon
  • Monitor the performance of battery systems in portable computers and Uninterruptible Power Supplies (UPS).
  • DiskCheckUp
  • View S.M.A.R.T. analytical information for a Hard Disk Drive.
  • Rebooter
  • Perform testing across reboots. This product is typically used in conjunction with BurnInTest.
  • Sleeper
  • Perform testing across sleep states. This product is typically used in conjunction with BurnInTest.
  • USB3Test
  • Benchmark USB port speeds with the USB 3.0 Loopback plug.
  • MemTest86 Pro
  • Boot into MemTest86 Pro from the USB drive to test for faults in memory.
  • Inline PSU Tester Software
  • Connect the PSU Tester to your PC via the USB connection and you can monitor the PSU statistics, including voltage, current, power, ripple and timing for each voltage rail. All data can be exported to a text file report.
  • PCIe Test Card Software
  • Verify the transmission speed, stability and voltage of your PCIe slot and diagnose, troubleshoot and load test the PCIe I/O functionality of your PC.

    *Software licences are perpetual and do not expire.

    *Updates for all the software packages are included for 12 months.

    Product Code: PM124

    Product Barcode: 860000 645546

Introduction to the PC Test Kit

This is a quick introductory video of our PC Test Kit. Investigate and pinpoint a range of PC hardware problems at any stage of a system's power-on process! The PC Test Kit is the portable and simple solution to hardware troubleshooting and repair for PC technicians and enthusiasts.

In this short video we provide an overview of all the hardware and software products included in the kit.

Right-click to download in MP4 format. 50MB
